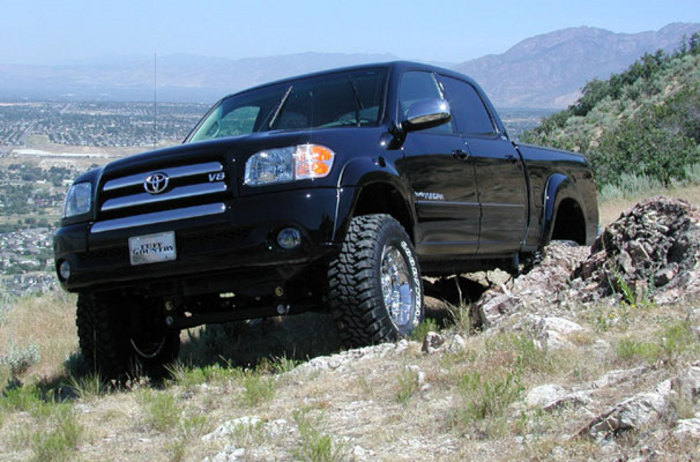

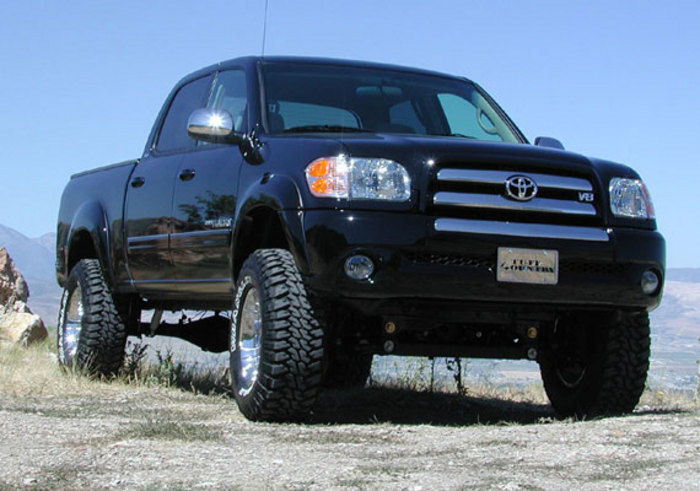

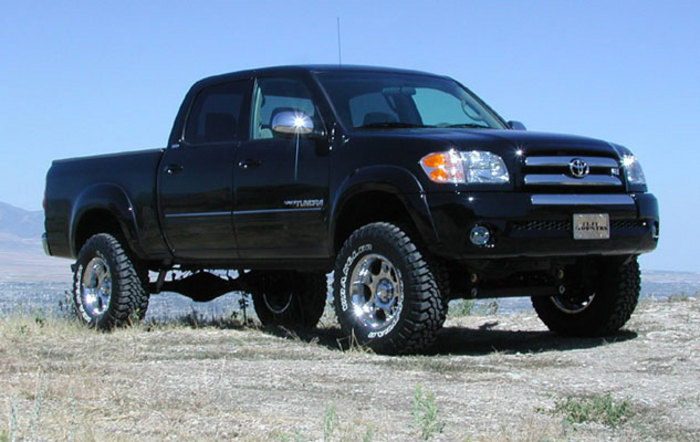

2004 Toyota Tundra 4x4 & 2wd - 5" Suspension Lift Kit

The Tuff Country EZ-Ride #55906 Toyota Tundra suspension lift is in a class by itself. Top quality design and ease of installation make this system unique from any Tundra lift kit on the market. New replacement heavy duty spindles eliminate the need for ball joint spacers. Upper ball joints & bearings are pressed into the new spindles. Upper coil / strut spacers are used to lift the front end and maintain a factory ride. Replacement struts are not required. A lower subframe drops the lower control arms while stabilizing the front end with its one piece design. Once installed 33" x 12.5" tires can be mounted for a whole new look.

At Suspension Connection we are the #1 retailer of Tuff Country products in the world. Great prices, expert knowledge and exceptional customer service are why so many customers trust us with their Tuff Country purchases. Try us out!

Features and Benefits

• Heavy duty replacement spindles
• Upper coil / strut spacers maintain a near factory ride
• Front stock struts can be retained
• One-piece subframe for added strength
• Allows use of 33" tires
• Upper ball joints &bearings pressed into new spindles

Installation Notes

1. Factory length shocks must be replaced with new extended rear shocks to install this lift kit properly. Please choose shocks & boots in the "Options" fields above if you have not already purchased extended shocks. Front struts can be retained
2. Factory rims will not fit with this lift kit. Rims with a 4.5" back spacing or less is required.
3. This kit is designed to fit with ABS brakes and automatic hubs. Vehicles without ABS brakes require optional ABS plugs.

Download Instructions	55906 Instructions
Recommended Tire Size:	33" x 12.5"
Amount of Lift:	5" Front / 4" Rear

Items Included:	1) One piece subframe, 2) Upper strut spacers, 2) Heavy duty steering knuckles, 2) Differential drop brackets, 2) Sway bar drop brackets, 1) Steering shaft extension, 2) Cast iron 4" rear lift blocks, 4) Rear ubolts, 1) Hardware bag
Weight:	100 lbs.
Part 55906 fits:	2004 Toyota Tundra
