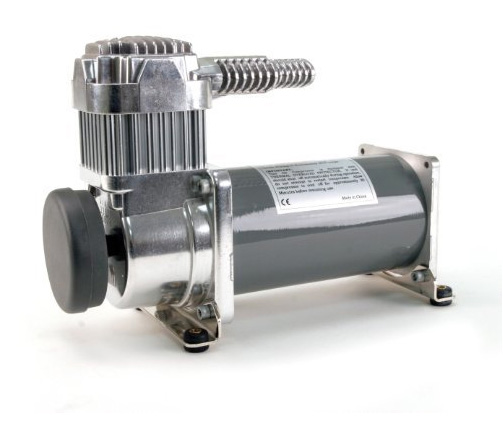

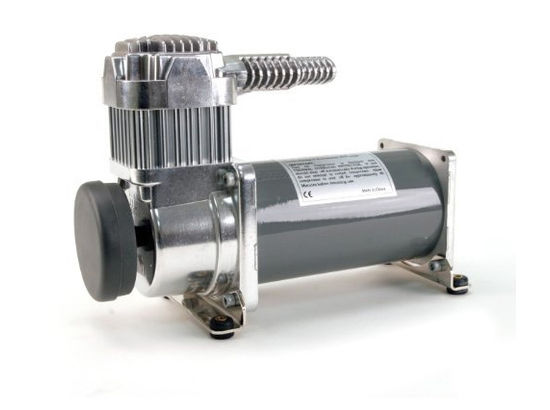

Viair 330C IG Series Air Compressor 12V - (Duty Cycle 100% @ 100 psi) - # 33050

Industrial Grade (IG) compressors are specifically designed to fill air reservoir tanks and feature a head assembly that includes a newly-developed, patents pending innovative head design for better heat dissipation. All IG compressors are certified CE spec. and feature outstanding sealing properties to the elements. Additionally, all IG compressors are equipped with a separate stainless steel braided PTFE-lined leader hoses and check valve assembly that protects the compressor against high amperage restarts.

Features and Benefits

• 12-VOLT
• Industrial Grade
• Designed to be used with an air supply tank
• 1/4" Stainless Steel Braided Leader Hose included
• 1 year manufacture warranty

Installation Notes

Note: A 150 PSI or lower pressure, non-adjustable pressure switch must be used with this compressor.

Voltage:	12-Volt
Duty Cycle:	100% @ 100 PSI
Max Working Pressure:	150 PSI
Max Amp Draw:	12 Amps
Dimensions:	188mm L x 100mm W x 171.5mm H
Net Weight:	8 lbs.

2.5 Gallon Tank	Fill Rate
0 to 105 PSI	4 min 00 sec
0 to 145 PSI	6 min 23 sec
85 to 105 PSI	50 sec
110 to 145 PSI	1 min 44 sec

5 Gallon Tank	Fill Rate
0 to 105 PSI	7 min 24 sec
0 to 145 PSI	4 min 50 seconds
85 to 105 PSI	1 min 30 sec
110 to 145 PSI	3 min 12 sec

PSI	CFM	A
0	1.06	6
10	.88	7
20	.81	8
30	.78	9
40	.76	9
50	.72	10
60	.69	10
70	.65	11
80	.64	11
90	.62	11
100	.60	12
110	.57	12
120	.53	12
130	.51	12
140	.48	12
150	.44	12

PSI = Pounds per squre inch - A measure of air pressure generated by an air compressor. CFM = Cubic feet per minute - Volume of air produced by the air compressor at a given pressure or PSI. A = Amps - A measure of the amount of electrical current used.

Weight:

15 lbs.
